Dry Chip Storage Silo

Creative Agromash designs and produces operational silos with a flat metal or concrete bottom for efficient storage or accumulation of dry sawdust, chopped straw, sunflower husk, wet and dry wood chips from wood processing. MSFS silos are used at granulated pellet fuel production plants, woodworking factories, pellet boilers and wood chips.

Silos are produced by the German technology company Lipp-system using an automated installation. Galvanized steel with zinc coating of at least 275 g / m2 or black painted steel (thickness of steel depending on silo size from 2 mm to 4 mm MSFS silos are manufactured according to the design documentation and have a strength under the increased snow level of 240 kg / m2 and a wind load of more than 160 km / h. Silos can be, both for internal use and for external use.



                                                Silo size:

Silos are made from 4.5 m in diameter and up to 30 meters in diameter. The standard range of MSFS silos has been developed. 60 m3, 100 m3, 150 m3, 190 m3, 300 m3, 500 m3, 600 m3,1200 m3, 2500 m3, 5000 m3, 7000 m3, 10,000 m3

                                          Silo equipment:

- Roof hatch

- Wall access hatches with inspection windows

- Explosion valve on the roof

- Level sensors

- System of aspiration filters

- Mechanical agitator to move the tyrs in the silo

- Hydraulic scraper for loosening chips (live bottom)

- Loading hatch or flange for pneumatic loading

- Vygruzhnaya grinding screw conveyor

- Hydraulic lifter for servicing gear turner

- Wall and roof ladder

- Active ventilation system with fans (pellet silo)

- Wet Chip Temperature Control System with Controller

- Fire extinguishing system

- Noria for loading silos

  Silo equipment:

 - Roof hatch

 - Wall access hatches with inspection windows

 - Explosion valve on the roof

 - Level sensors

 - System of aspiration filters

 - Mechanical agitator to move the tyrs in the silo

 - Hydraulic scraper for loosening wood chips and silage unloading

 - Loading hatch or flange for pneumatic loading

 - Vygruzhnaya sweep auger

 - Hydraulic lift for servicing the gear of the agitator or auger

 - Wall and roof ladder

 - Active ventilation system with fans (pellet silo)

 - Wet Chip Temperature Control System with Controller

 - Fire extinguishing system

 - Noria for loading silos

     Mechanisms for unloading products from the silo

 For unloading products from silo, depending on its properties: humidity and fraction, we use several options for unloading systems:

  - our production scraper hydraulic discharge system

  - screw discharge system of the French company MORILLON

  - auger discharge system of the German company GOTTWALD

  - resorodno-rotary system of our production

silo for chips 2500 m3

silo 190 м3

silo  325 м3

silo 500 м3

silo  650 м3

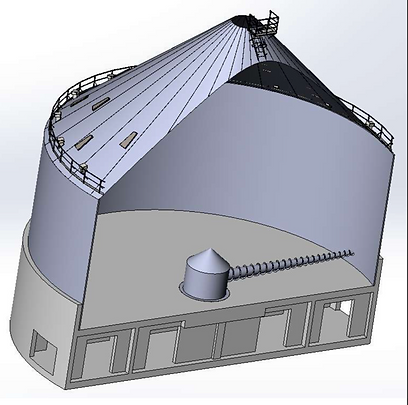

Options for unloading mechanisms for unloading chips from silos
 rotary system for unloading dry silts
scraper hydraulic discharge system for unloading wet silage chips
auger discharge system of the French company MORILLON
Screw discharge system of the German company GOTTWALD
Выгружной радиально-поворотный шнек производства Креатив-Агромаш

Technology proven by time! Over 45 years of operation
